Product Description

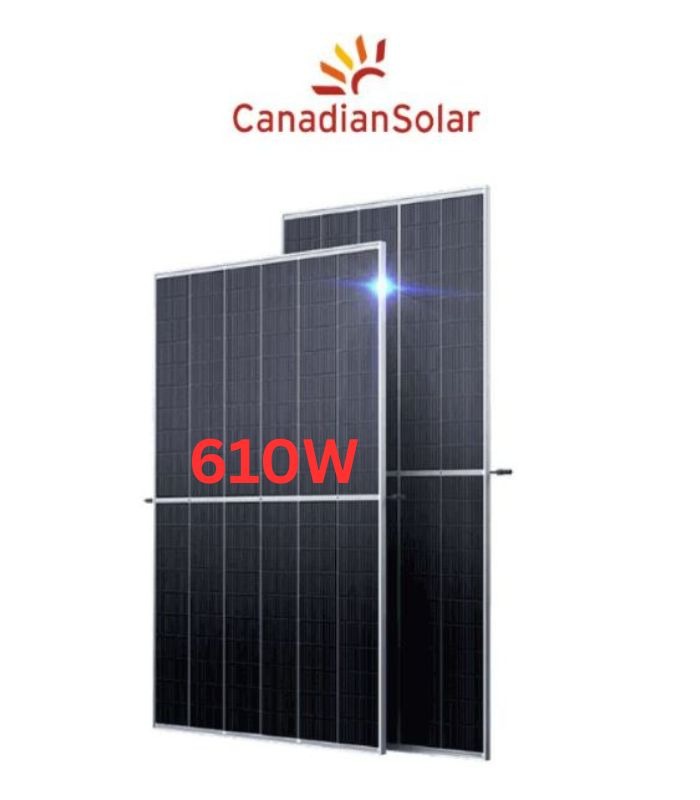

• Canadian Solar 610W N-Type Bifacial is a premium TOPCon dual-glass solar module designed for commercial and industrial high-output systems.
• It delivers up to 610W rated power output with high efficiency around 22–22.6%, making it ideal for maximum energy generation per panel.
• The bifacial design captures sunlight from both front and rear sides, increasing total generation especially on reflective surfaces and elevated mounting structures.
• Built with N-Type TOPCon cells, it offers lower degradation, better low-light performance, and improved long-term reliability compared to P-Type panels.
• Its dual tempered glass construction enhances durability, fire resistance, and protection against dust, wind, and harsh weather conditions in Pakistan.
• The panel is suitable for net metering, industrial rooftops, commercial buildings, and solar farms where high wattage reduces system size and BOS cost.
• It performs reliably in hot climates (-40°C to +85°C operating range) with strong temperature stability and consistent output.
Specifications
- Brand: Canadian Solar
- Wattage: 610W
- Type: N-Type Bifacial
- Technology: TOPCon
- Efficiency: Up to 22.6%
- Cell Type: N-Type Mono crystalline
- Module Structure: Dual Glass
- Bifacial Gain: Rear-side power generation support
- Dimensions: ~2384 × 1303 × 35 mm
- Weight: ~32.3 kg
- Operating Temperature: -40°C to +85°C
- Junction Box: IP68
- System Voltage: 1500V DC
- Warranty: 12-year product / 30-year linear performance
Uses
- Residential rooftop solar systems
- Commercial buildings
- Industrial power plants
- Net metering systems
- Solar farms / ground-mounted projects
- Hybrid inverter systems
