Product Description

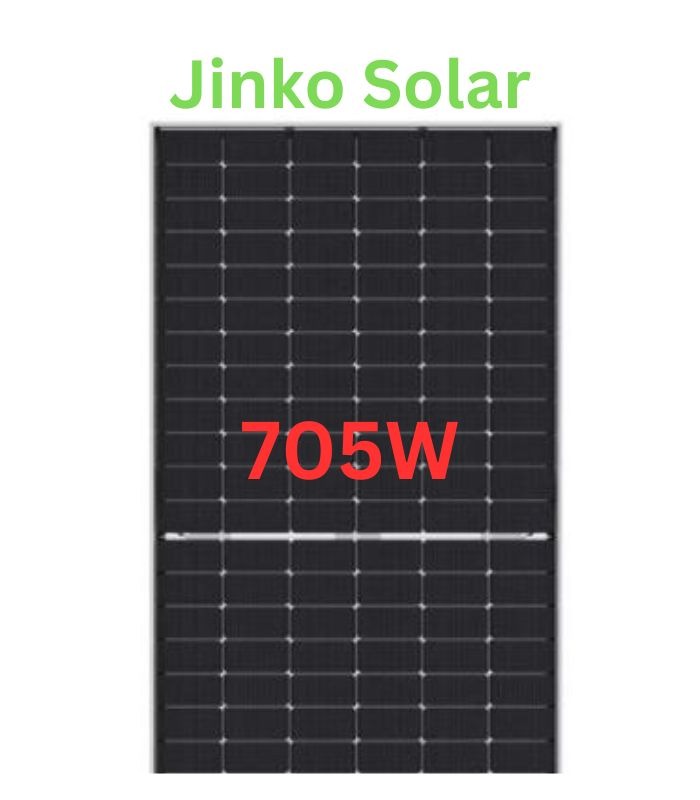

• Jinko 705W N Type Bifacial 24 BB is a next-generation high-capacity solar module built for commercial, industrial, and utility-scale projects.
• Its advanced 24 BB (24 busbar) architecture improves current collection, reduces resistance loss, and boosts overall power delivery.
• The bifacial dual-glass design captures sunlight from both sides, increasing total energy generation on reflective rooftops and ground-mounted systems.
• Built with N-Type TOPCon cells, it offers low degradation, stronger low-light performance, and better hot weather stability for Pakistan conditions.
• Its heavy-duty dual 2.0mm tempered glass and reinforced frame provide excellent durability against dust, wind, and harsh outdoor environments.
• The panel is ideal for net metering, solar farms, industrial rooftops, and large hybrid systems where maximum watts per panel matter most.
• With up to 22.7% efficiency and a 30-year linear power warranty, it delivers excellent long-term ROI.
Specifications
- Brand: Jinko
- Wattage: 705W
- Type: N-Type Bifacial
- Technology: TOPCon
- Busbar: 24 BB
- Efficiency: Up to 22.7%
- Vmp: 40.62V
- Imp: 17.36A
- Voc: 48.72V
- Isc: 18.38A
- Bifacial Gain: Up to 25–30%+
- Glass: Dual 2.0mm tempered glass
- Dimensions: 2384 × 1303 × 33 mm
- Weight: 37.1 kg
- Junction Box: IP68
- Warranty: 12-year product / 30-year performance
Uses
- Utility-scale solar farms
- Industrial rooftop plants
- Commercial plazas
- Ground-mounted solar systems
- Net metering projects
- High-capacity hybrid systems
- Reflective white rooftop installations
